Technical Specifications Overview Dimensions
Without mount: ⌀80 x 89 mm (⌀3.1 x 3.5") With mount: ⌀80 x 153 mm (⌀3.1 x 6") M. Zuiko Digital ED 17 mm PRO: ⌀68.2 x 87 mm (⌀2.7 x 3.4") M. Zuiko Digital ED 45 mm PRO: ⌀70 x 84.9 mm (⌀2.8 x 3.3") Outdoor case: ⌀91.6 x 196.3 mm (⌀3.6 x 7.7") Face Recognition Yes License Plate Recognition Yes Smart Detections (People, Vehicles, Animals) Yes Resolution 4K Field of View
M. Zuiko Digital ED 17 mm PRO: H: 52°, V: 39°, D: 65° M. Zuiko Digital ED 45 mm PRO: H: 21.6°, V: 16.2°, D: 27° Audio Two-way audio Weatherproofing IPX5 (With the outdoor case) Mounting Wall, pole mount (Included) Tripod mount (Optional) UniFi Application Suite Protect Performance Networking Interface

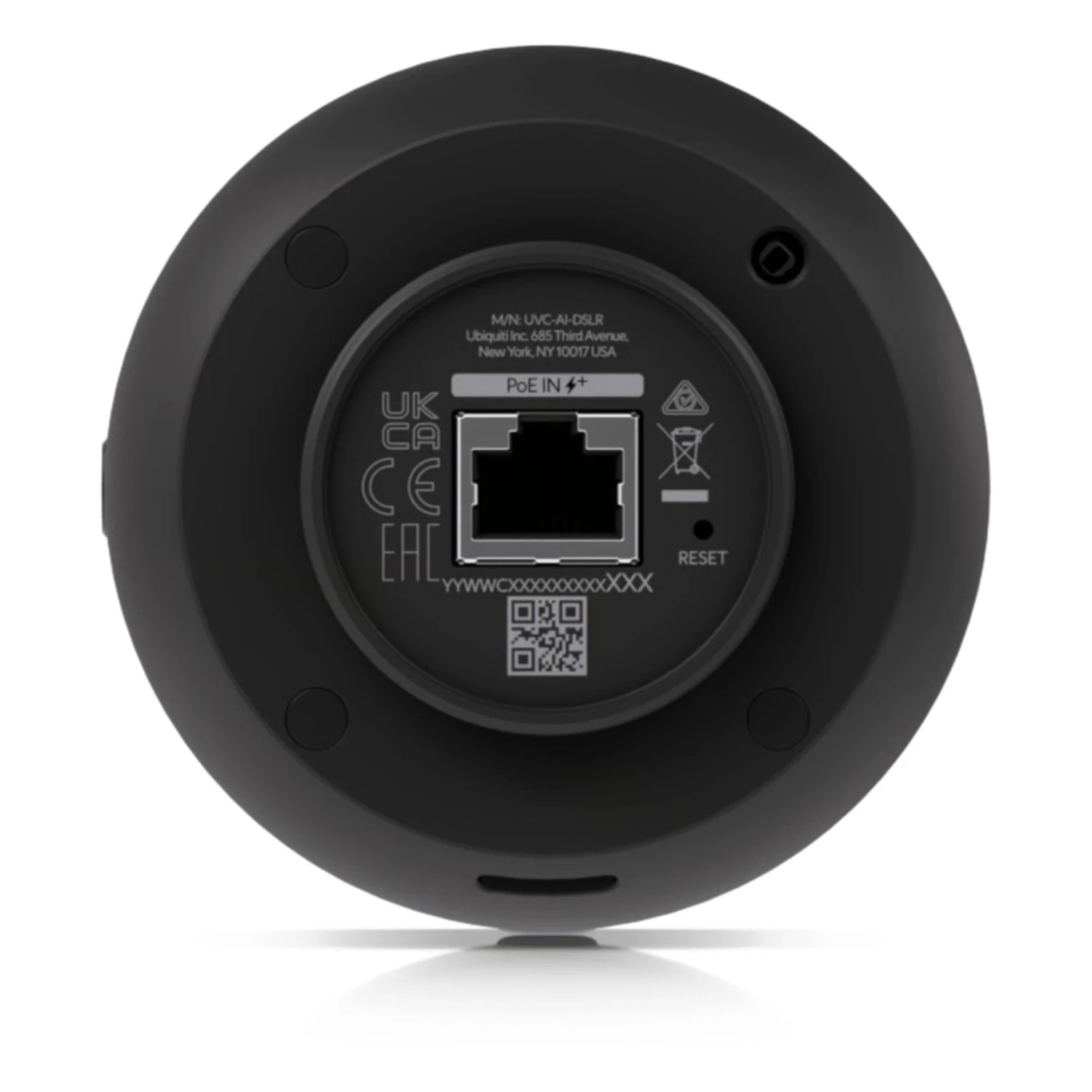

GbE RJ45 port Video Image Settings

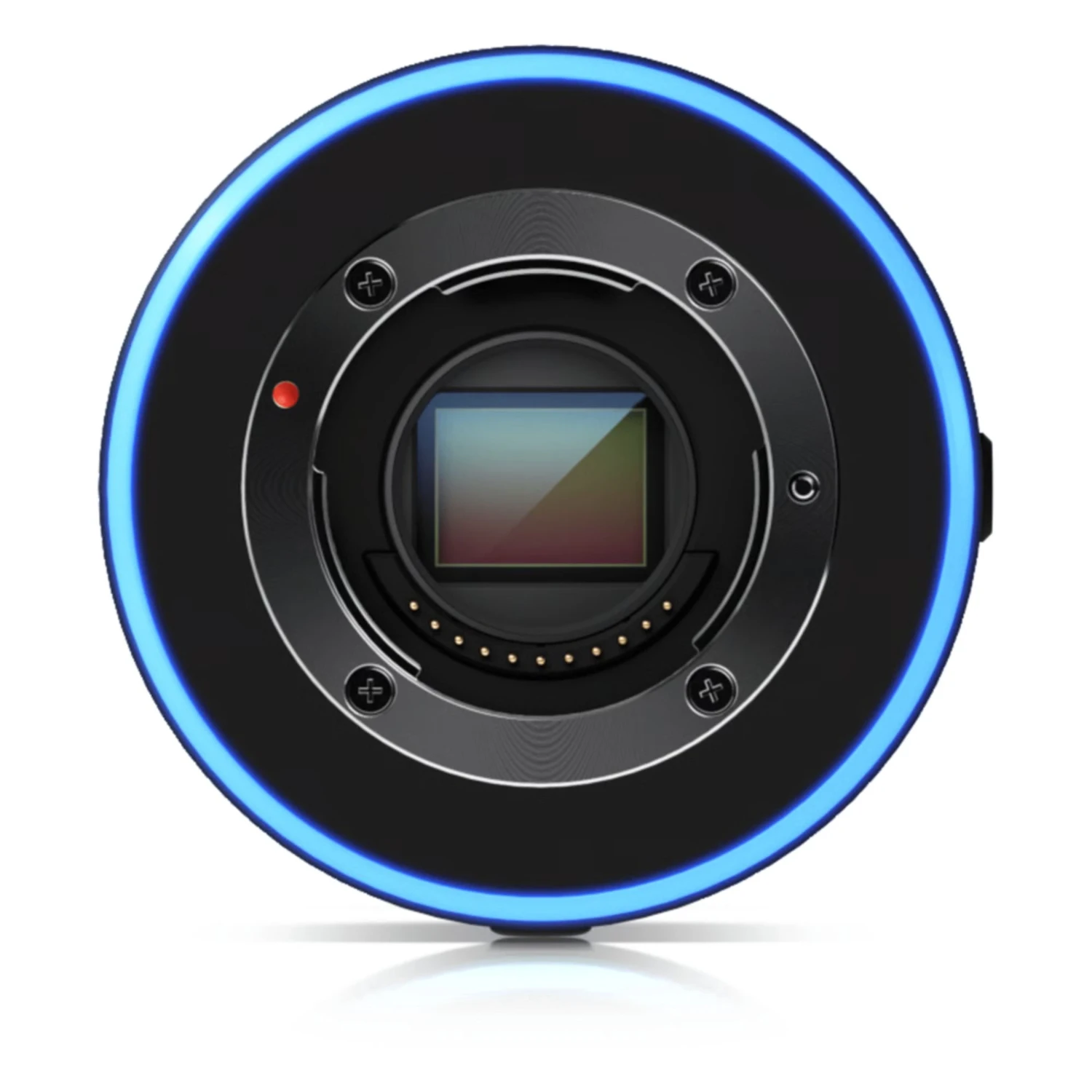

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay Max. Frame Rate 30 FPS Resolution 8MP 3840 x 2160 (16:9) Optics Sensor 4/3" 10MP CMOS Lens
M. Zuiko Digital ED 17 mm ƒ/1.2 PRO M. Zuiko Digital ED 45 mm ƒ/1.2 PRO Hardware Max. Power Consumption
17.77W (With lens working) Supported Voltage Range
37—57V DC Power Method
PoE+ Processor
Quad-core Arm® Cortex®-A53 based chip Pole Mount Diameter
1.5–2" (38–50 mm) Weight
Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb) Enclosure Material
Aluminum alloy Mount Material
Wall mount: aluminum alloy Pole mount: aluminum alloy Button
(1) Factory reset (1) Lens release key Ambient Operating Temperature
-20 to 40° C (-4 to 104° F) Ambient Operating Humidity
10 to 90% noncondensing NDAA Compliant
Yes Certifications
CE, FCC, IC
